İzmir Light Rail System Stage 6, Karabağlar - Gaziemir Line

Brief Description of the Project:

The İzmir Light Rail System 6^th Stage Karabağlar-Gaziemir Line, included in the 2030 Izmir Transportation Master Plan, was planned by the Izmir Metropolitan Municipality to provide solutions to traffic problems in the city, reduce vehicle traffic load in the city, and further develop the light rail transportation system, which is increasing the number of lines and passengers.

It is aimed to provide transportation between the central districts of İzmir, Menderes, Gaziemir, Karabağlar, Konak, Buca and especially to provide access to the city center of the southern regions.

The project includes a 32.60 km long NATM and TBM (R=6.50m) double tube tunnel; 24 underground stations (10 nos. of 160m long Cut-Cover type and 14 nos. of 231m long bored tunnel type) and a depot and workshop with a capacity of 150 vehicles.

The entire project route is underground, except for the depot area.

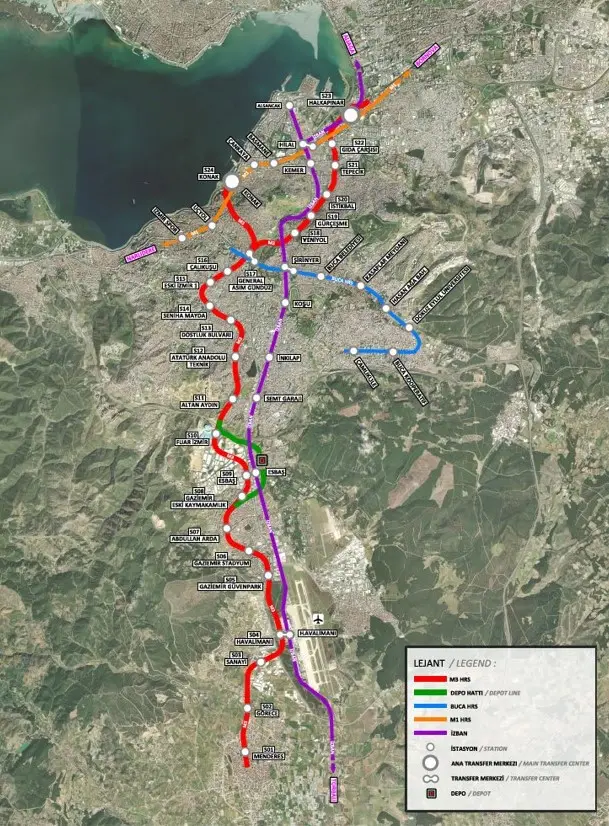

Main Line: Starts from Menderes Station at km: 0+000 and ends at Halkapınar Station at km: 26+409. 23 stations and 1 depot area are planned.

Konak Line: Planned as a double tube and starts at Km: 0+000, the branching off at General Asım Gündüz Station area at Km: 19+500 of the Main Line, and ends at Konak Station at Km: 2+709. 1 underground station is planned on this line.

1 depot area on the main line is planned, and a total of 3328 m single tube tunnel with a length of 1628 m and 1700 m providing access to the depot area at Km: 9+525 and Km: 12+800 is designed.

The project includes a Depot and Workshop Area with a capacity of 150 vehicles. Services were also provided for the preparation of designs for a rooftop solar energy system to meet the building's electricity needs on the roof of the Depot and Vehicle Maintenance Workshop and on the train parking area.

All designs were prepared with BIM (Building Information Modeling)

Scope of Services :

• Ground Investigation and Geotechnical Works,
• Preparation of Geotechnical Reports,
• NATM and TBM Tunnel Geotechnical Report,
• Station Geotechnical Reports,
• Depot Facility and Shaft Geotechnical Report,
• Production of Underground and Surface Maps, Preparation of Surveys,
• Reports and Simulations,
• Preparation of Transportation Study Report,
• Preparation of Feasibility Report,
• Preparation of EIA Report,
• Performance of Passenger Simulations,
• Preparation of Noise and Vibration Reports,
• Preparation of Route Plan-Profiles,
• Preparation of Line Superstructure Designs,
• Preparation of Line Structure Designs,
• Preparation of Drainage Designs,
• Construction Plan, Permanent-Temporary Traffic Regulation,
• Environmental Arrangement and Landscape Designs,
• Tunnel Electromechanical Designs,
• Final Designs of Station Buildings (24 underground cut-and-cover and drilling stations)
• Preparation of Architectural Designs,
• Preparation of Static Designs,
• Preparation of Electromechanical Designs,
• Zoning Plans, Expropriation Plans, Historical and Natural Site Studies,
• Depot Facility Designs (150 Vehicle Capacity),
• Preparation of Tender Documents,
• Construction Work Tender Documents and Technical Specifications were prepared in accordance with FIDIC 2017 general conditions in accordance with EBRD procurement procedures.
