Ulukışla – Yenice Railway

Brief Description of the Project:

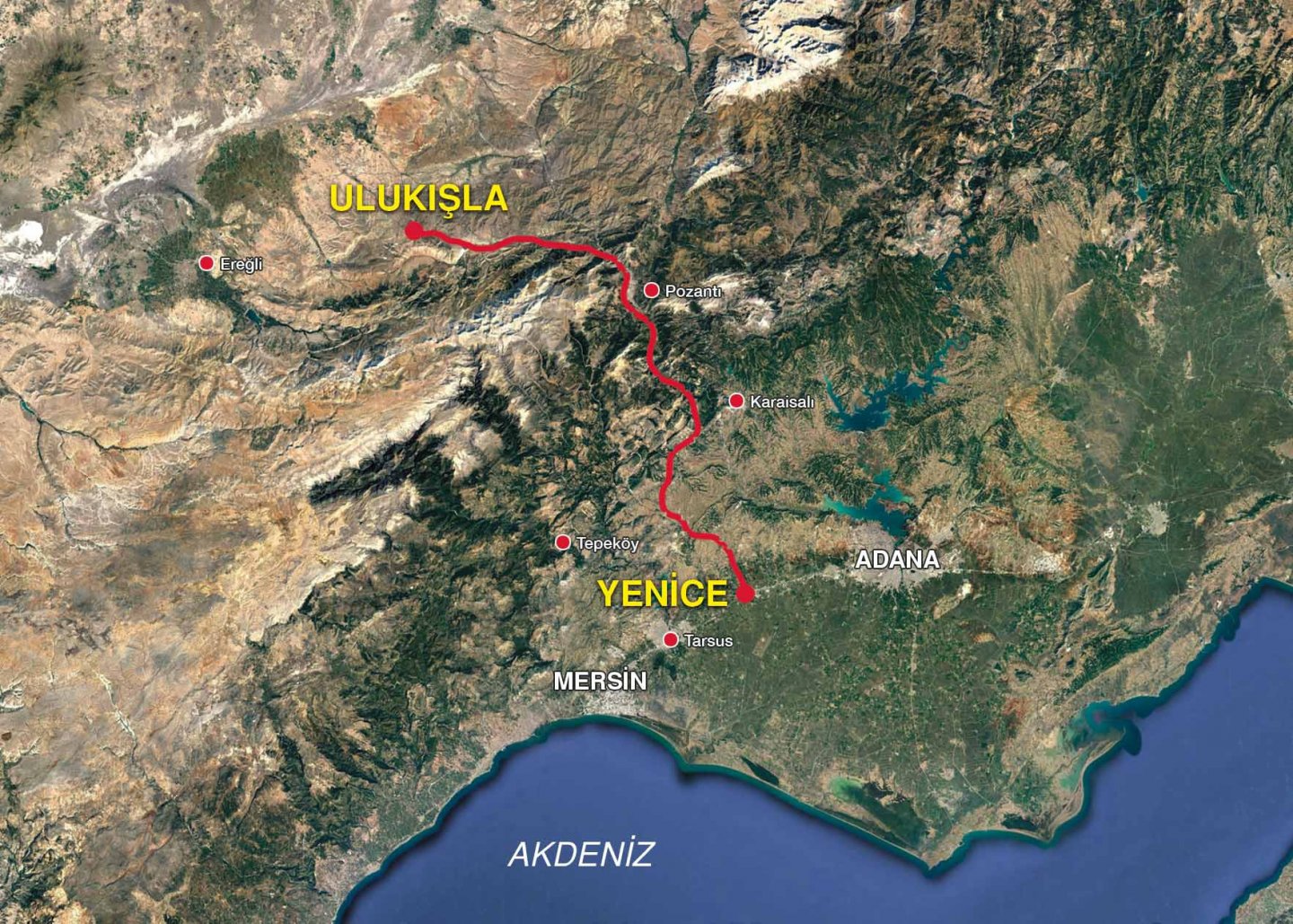

Survey, design and engineering services for 106,08 km long Ulukışla - Yenice high speed railway (Project speed 200 km/h).

• Route Corridor Survey for 106,51 km long double-track fast railway route,

• Preliminary Design, Final Design, Superstructure Design and Drainage Design for 106,08 km long double-track fast railway route,

• Hydraulic and hydrological surveys and preparation of reports,

• 106,08 km ground survey engineering services

• Preparation of 1/2000 scale photogrammetric maps for 106,08 km long railway route,

• Carrying out hydraulic and hydrological studies, preparation of route plans and profiles, drainage / platform / link road drawings and cross-sections and calculation of soil volumes, all within scope of Final Design,

• Preparing Final designs for small and large engineering structures,

Bridges                          26 Nos, Total: 5960 m
Viaducts                           3 Nos, Total 1925 m
                                     (V1 H_max:75,80 m post tension, V2 H_max:38 m pre-tension + post tension, V3 H_max:76,90 m post tension)

Cut-cover Tunnels         8 Nos, Total: 1321 m
Tunnels                          28 Nos, 48832 m NATM
Underpasses                34 Nos
Overpasses                   14 Nos
Railway Underpasses   1 No
Box Culverts                  90 Nos

• Superstructure and wire-fence design of 106,08 km long railway route,

• Design of 2 Nos railway station and 1 No siding structure,

• Preparation of land acquisition plans for 106,08 km long railway route, and

• Within the scope of the tender documents for the construction of the route; preparation of construction document contracts and specifications together with exploration and quantity surveys .

Scope of Services :

• Route Corridor Survey,
• Preparation of Final Designs,
• Preparation of Expropriation Plans,
• Preparation of Technical Specifications,
• Preparation of Tender Documents.
