Aliağa Organized Industrial Zone Consultancy Services for Infrastructure Works (ru)

Brief Description of the Project :

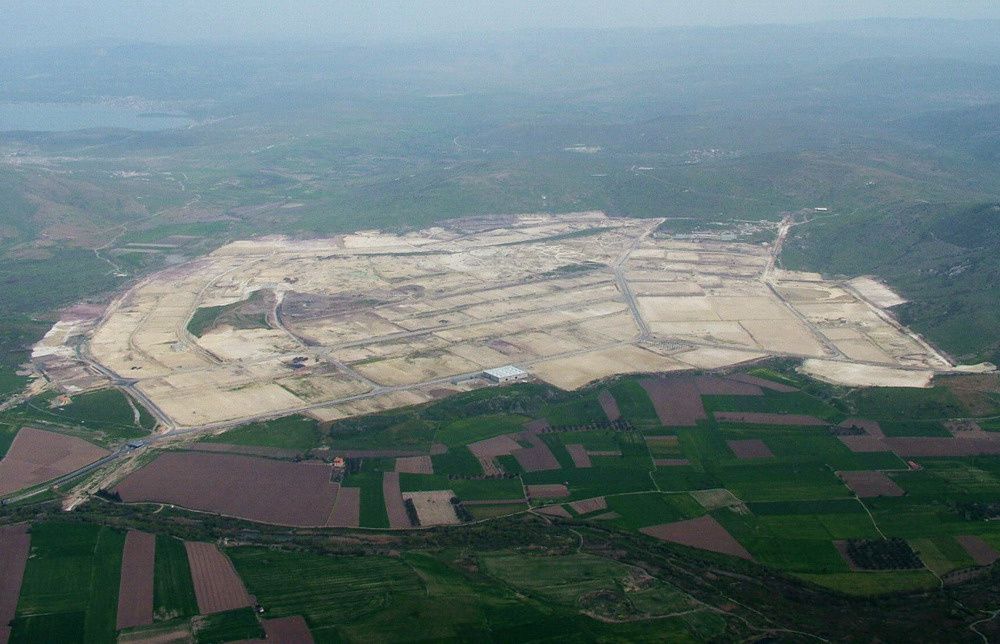

The project consist of total 922 ha comprising 371 plots varying from 5,000 m² to 300,000 m² in size in Organized Industrial Zone in Aliağa sub province of İzmir.

• Levelling of plots,
• Access and inner roads (41 km),
• Retaining walls (Geo block),

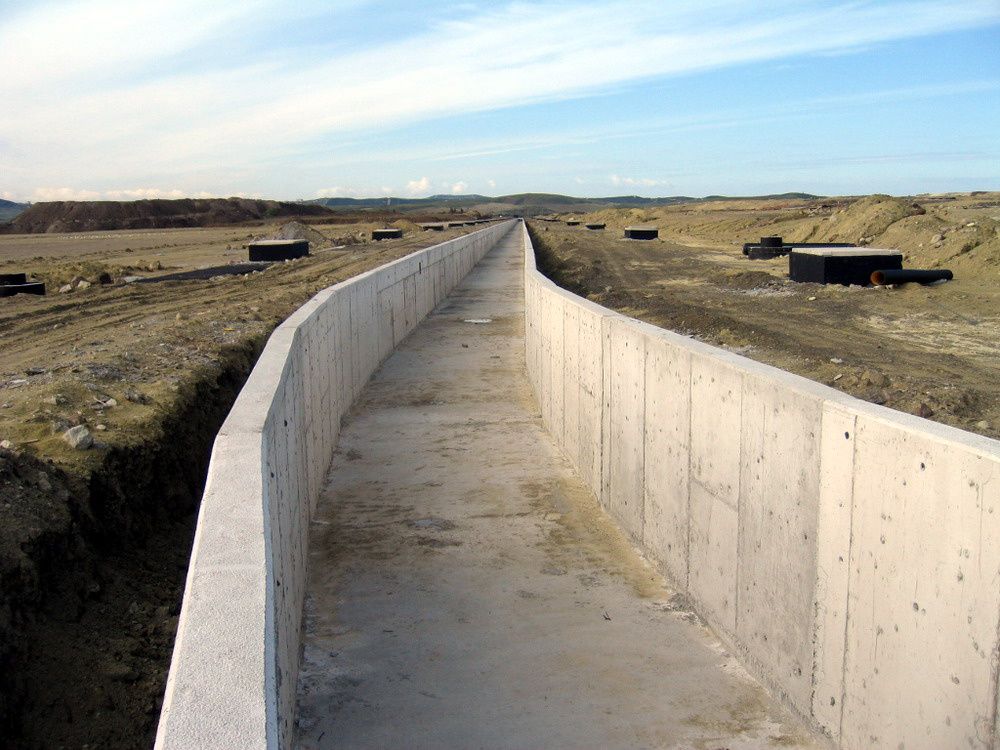

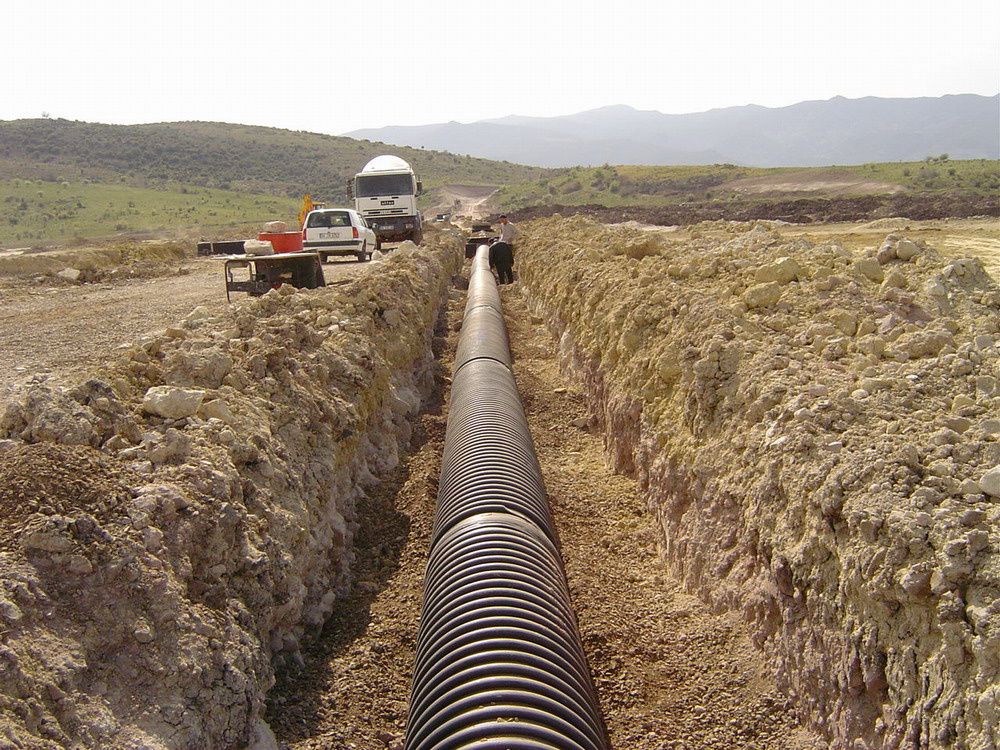

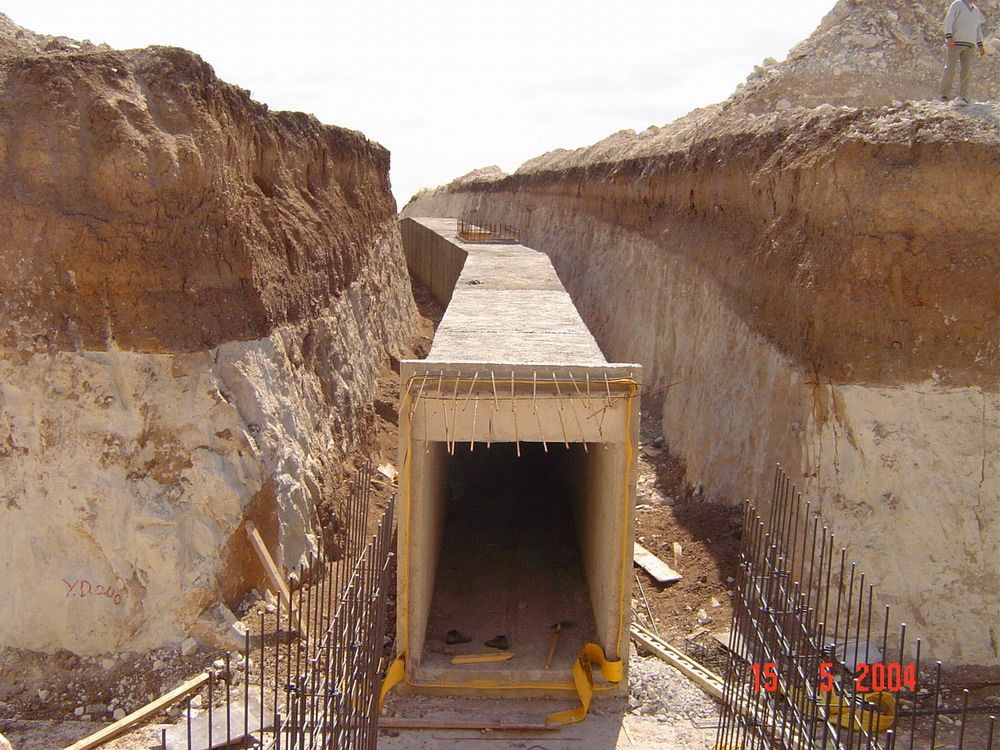

• Stormwater System: U channel – 14.4 km (1.0 x 1.0m – 1.0 x 2.0m), Trapeze channel 11.2 km (0.50 x 1.0 x 0.50m), Box culvert 4 km (1.0 x 0.70m – 1.5 x 1.7m), Drainage channels 3.8 km (3.0 x 2.0m), Pipeline 30 km with Ø200 – Ø600 mm diameter HDPE, 209 No manholes and plot connections,
• Wastewater System: construction of pipeline, 43 km with Ø200 - Ø1000 mm diameter, 612 no manholes and plot connections,

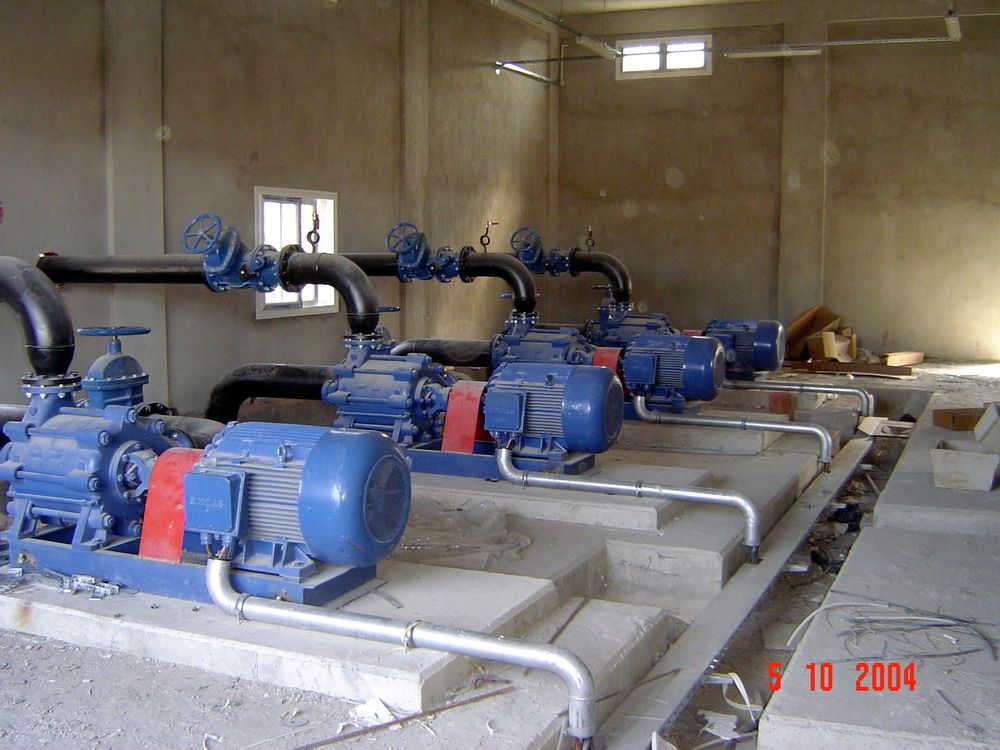

• Water Distribution System: Construction of PVC pipeline with Ø100 - Ø300 mm diameter and Steel pipeline with Ø400 - Ø700 mm diameter, construction of 6,000 m³ and 1,000 m³ reservoirs and 2 no pumping stations.

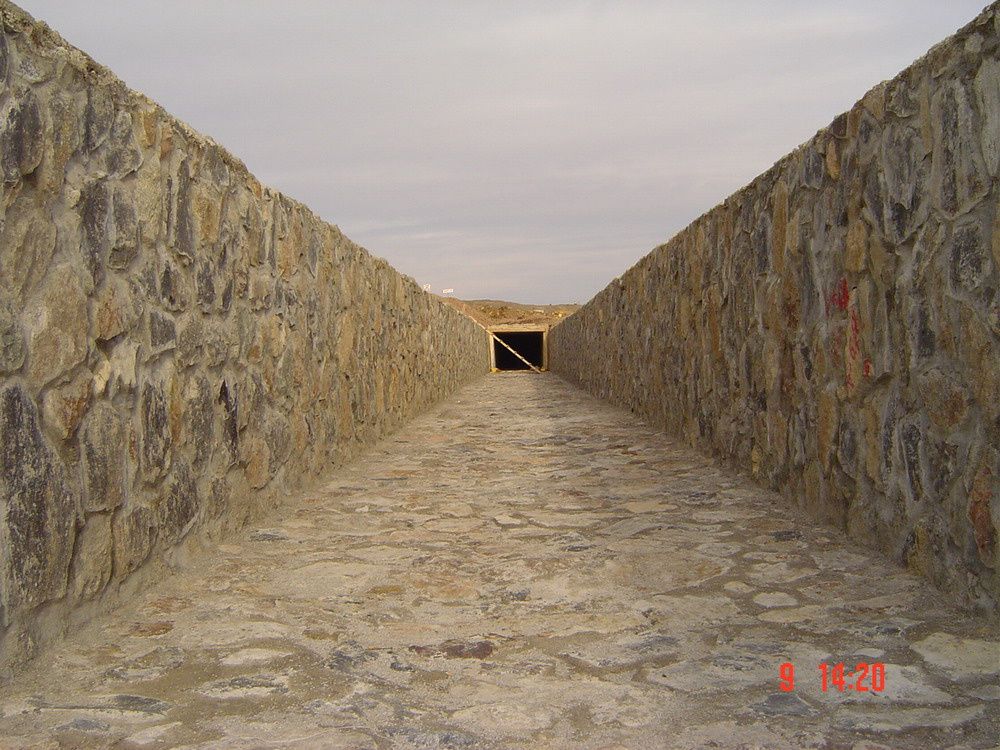

• Galleries (36.6 km), fencing, parapet etc.

Scope of Services :

• Preparation of tender documents,
• Technical assistance during tender period and tendering,
• Supervision of construction works.
