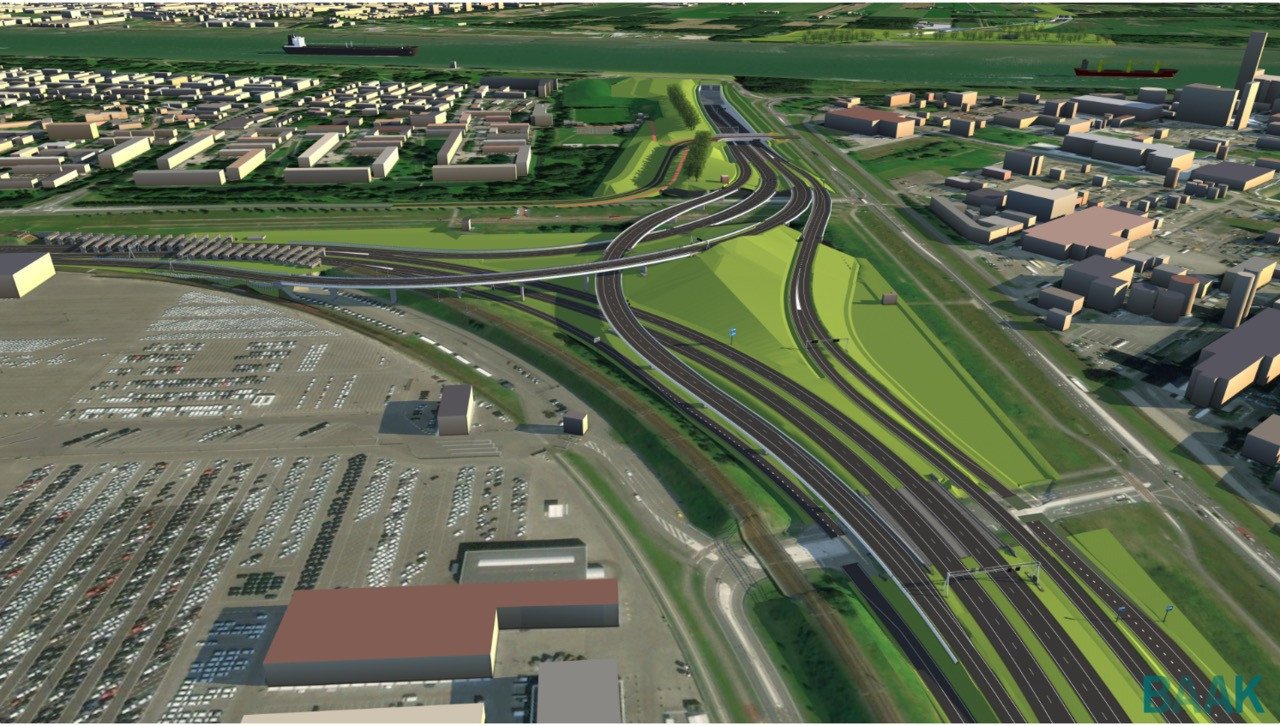

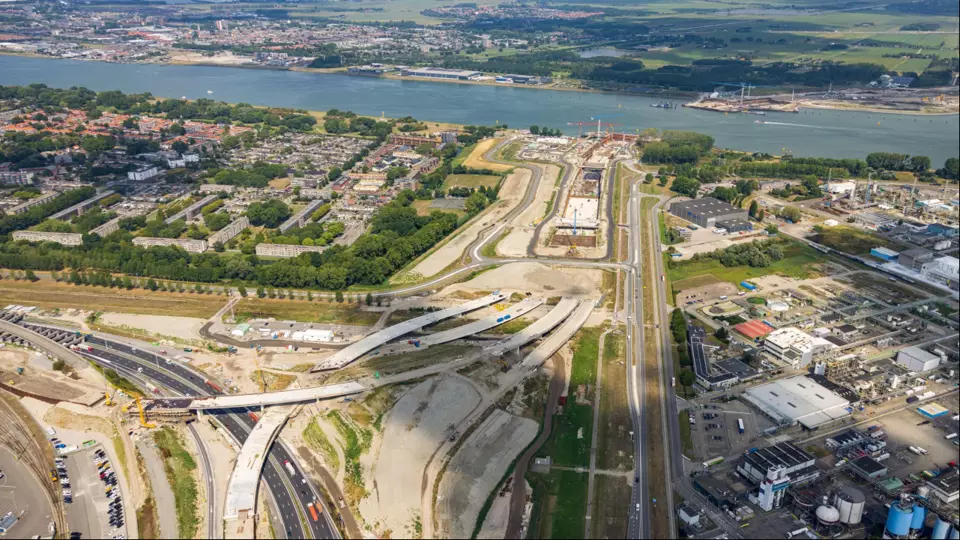

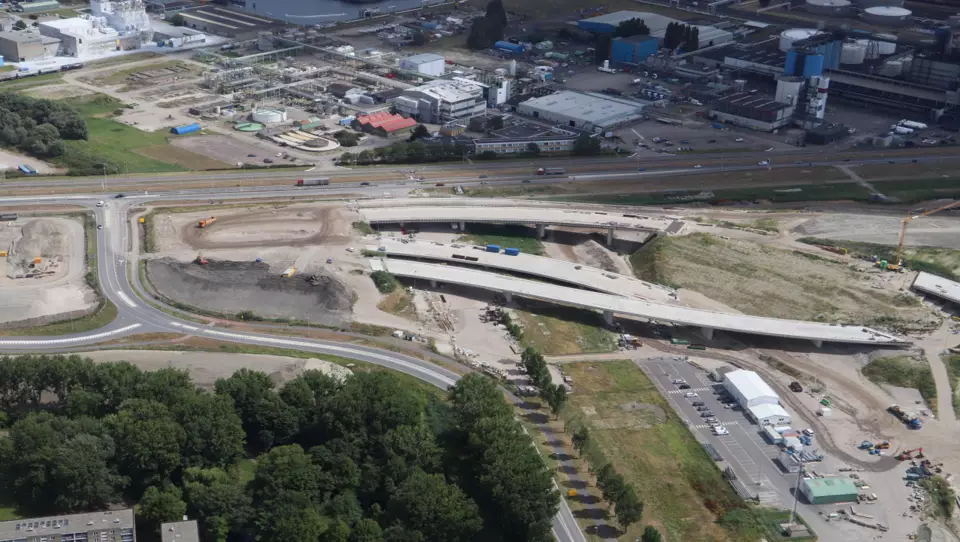

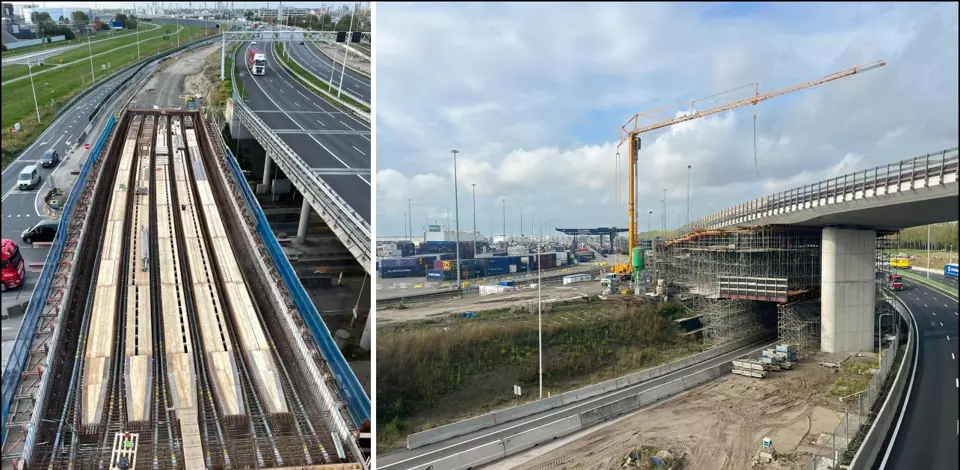

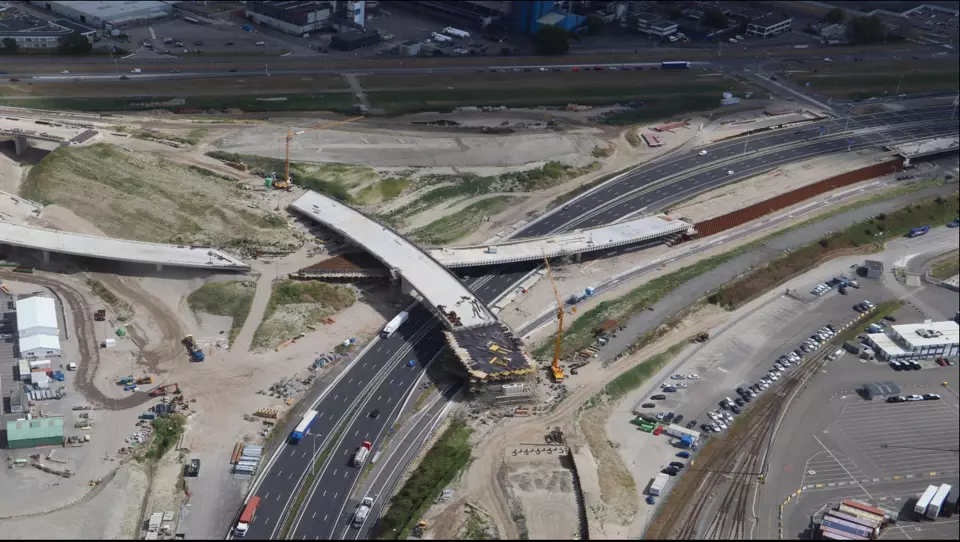

Netherlands - KW21-A, KW21-B, KW22, KW23, KW25, KW31, KW32 Bridges and Viaducts

Brief Description of the Project :

Engineering and design works for KW21-A, KW21-B, KW22, KW23, KW25, KW31, KW32 bridge and viaducts to be constructed under the scope of AMS#4557438 main contract that is signed between “De Staaat der Nedelandern, Ministerie van Infrastructuur en Waterstall” (RWS) (Dutch government institution) and BAAK EPCM  v.o.f.

Scope of Services :

• Reviewing and verifying the design data submitted by Client,
• Structural designing according to Eurocode and local specifications,
• Analyzing and calculating superstructures and infrastructures (ground structures, soil retaining structures, side foot and middle foot),
• 3D modelling with Revit / Allplan and AutoCAD, drawings of plan/section and detailed reinforcements,
• Preparing final design calculation reports and designs,
• Preparing detail designs,
• Preparing necessary design data for the supply of detailed engineering materials for Bear and Expansion Joints,
• Preparing list of bills of quantities.
• Additionally, “Maasdelta Tunnel” modelling in LOD400 Level is carried out, including formwork and reinforcement detailed modelling.
